Bokler QJM series drive motor models are complete with a displacement range of 0.063-10 (L/rev). It has been widely used in construction machinery, lifting and transportation, engineering machinery, metallurgical heavy industry, petroleum exploration, coal mining machinery, light industry injection molding, geological exploration and other fields.
Ordering Information
Model Example:
2FS QJM21-0.63 SZ Variable displacement radial spherical piston motor with dual speeds,
manual controlwith spool valve, series number21 ,displacement 0.63 I/r, motor with brake and bearing.

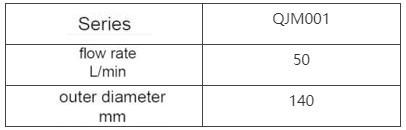

Flow rate of OJM motors(=rated speed X displacement)

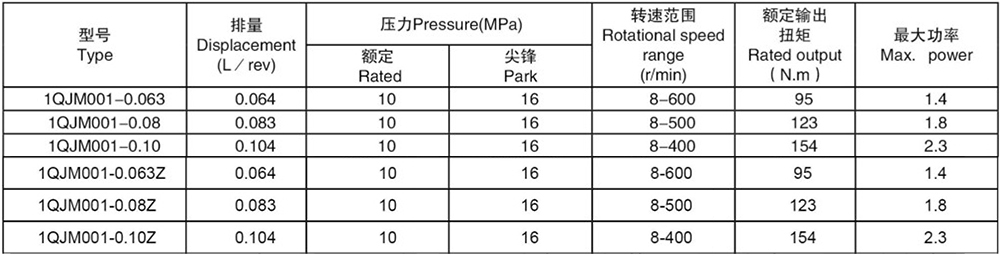

Technical data of 1QJM一一series fixed displacement hydraulic motor
Note: 1The technical parameters of various sorts of types hydraulic motors with beating have the same
data as standard type hydraulic motors.
Technical parameters of 1 QJM322-"motors are the same as those of 1 QJM32 above listed.

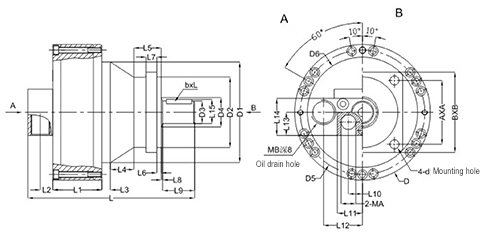

External Connection Dimension
.jpg "1QJM001")
For more details and parameters, please ask for the company brochure Tel: 0574-86303976
