Bokler QJM series drive motor models are complete with a displacement range of 0.063-10 (L/rev). It has been widely used in construction machinery, lifting and transportation, engineering machinery, metallurgical heavy industry, petroleum exploration, coal mining machinery, light industry injection molding, geological exploration and other fields.
Type description
Model description example
Model Example:
2FS QJM21-0.63 SZ Variable displacement radial spherical piston motor with dual speeds,
manual controlwith spool valve, series number21 ,displacement 0.63 I/r, motor with brake and bearing.

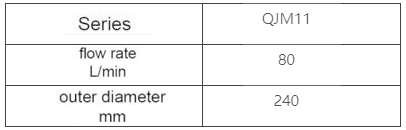

Flow rate of QJM motors(=rated speed X displacement)

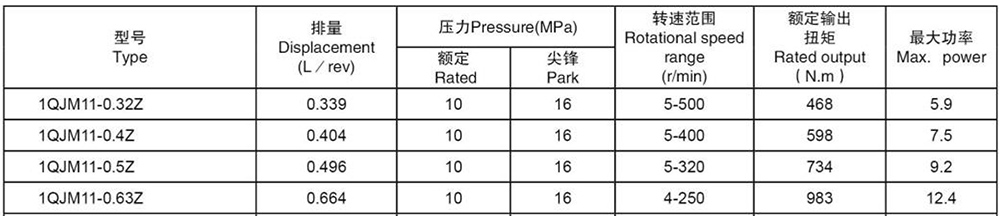

Technical data of 1QJM一一series fixed displacement hydraulic motor

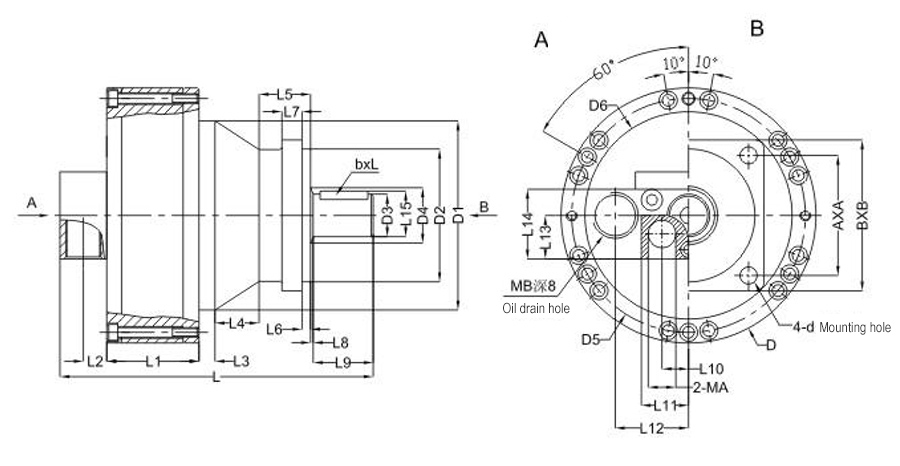

Appearance connection size
For more details and parameters, please ask for the company brochure Tel: 0574-86303976
