Bokler QJM series drive motor models are complete with a displacement range of 0.063-10 (L/rev). It has been widely used in construction machinery, lifting and transportation, engineering machinery, metallurgical heavy industry, petroleum exploration, coal mining machinery, light industry injection molding, geological exploration and other fields.
Type description
Model description example
Model Example:
2FS QJM21-0.63 SZ Variable displacement radial spherical piston motor with dual speeds,
manual controlwith spool valve, series number21 ,displacement 0.63 I/r, motor with brake and bearing.

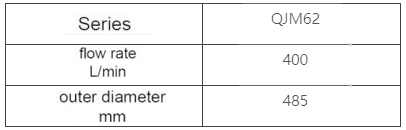

Flow rate of QJM motors(=rated speed X displacement)

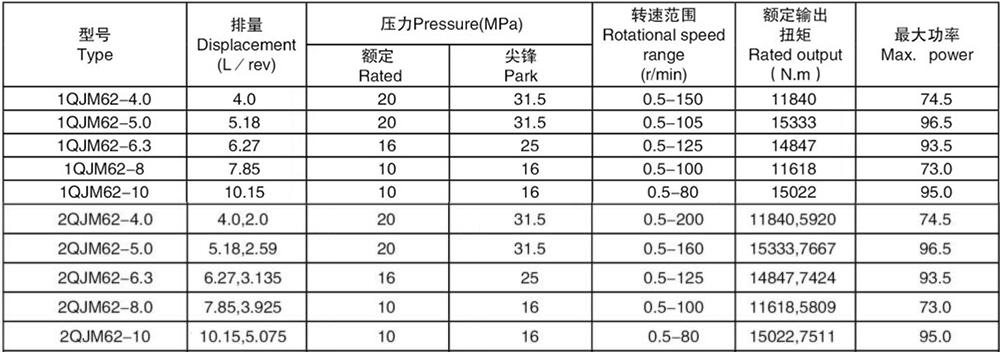

1QJM※※ -- ※※type hydraulic motor technical parameters
Note:
1. The technical parameters of each type of hydraulic motor with support and valve group are the same as those of the corresponding standard hydraulic motor in the table above.
2. The technical parameters of the 1QJM322 - ** motor are the same as those of the 1QJM32 standard in the above table.
Appearance connection size
.jpg "QJM62")
For more details and parameters, please ask for the company brochure Tel: 0574-86303976
