Product → XQM

XQM6-400~900

Model：

Radial plunger type hydraulic motor

MAIN CHARACTERISTICS

1.All XQM advanced model hydraulic motors,low noise due to the design consisting of an eccentric crankshaft and lowliberationfrequency five-pistons.;

2、All XQM advanced model hydraulic motors dessess piston shoe surface of especial heat treatment, Thisexcellentcoatingenhances smoothness o piston shoes surace, and minimizes substantially the riction between contact surtacesof pistonand crankshaft. high starting torque, stable run very low speed.;

3.The oil-distributor has been improved for perfact balance of all moving parts andthis leadstograter volumetriceficiencyQuiet operation and high reliability.

4．The main parts are processed by CNC machines imported form japan and numerical control lathes, All seals andhigh-intensity interior turret screw are imported form GERMANY, ,USA and TAlWAN, the ap。

5．Large-sized conical crankshaft bearing used for extraordinally long service lifetime.

Product Details

Model Number Information

XQM6-400~900

INTALLATION & APPLIATION

1.Recommend filtrate precision for normal industrial purpose is 25um

2.The normal rang of oil stickness for good working is between 15-1000cst.

3.ln preventing the oil leaking the drain tube should be on a horizontal position above the motor .

4.Fullfill the motor body with hydraulic oil before first start.

5.The drain port should be connected independently to tank. Max. pressure for the motorbody is 0.1MPa.

6.Motor can be installed at any position with rigiditic support, shafts of the motor and its transmission should beconcentric，keep oil port clean，do not let any solid odjects into it.

7.Release the radial duty of the shaft ,prolong the life expectancy of the motor.

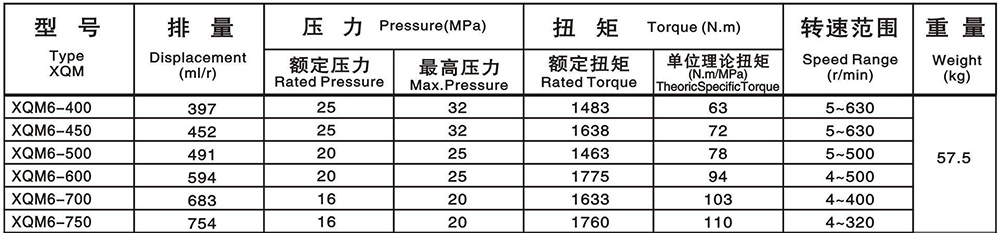

Technical Specification

XQM6-400~900
