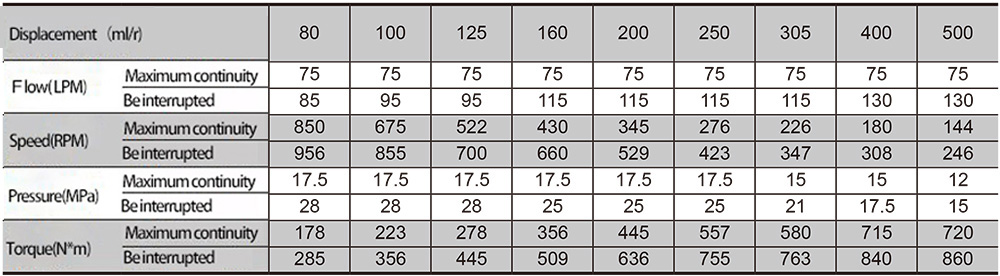

Specification Data

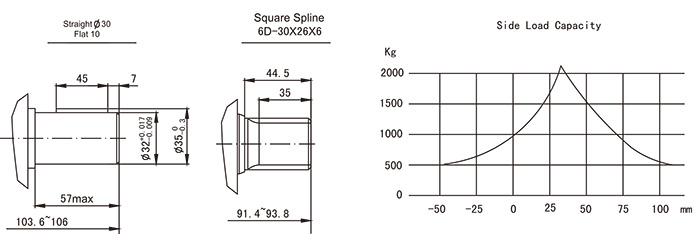

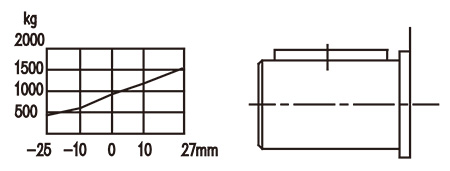

Shaft Side Load Capacity

◎ Max. pressure is the allowed pressure at the inlet port.

◎ A simultaneous maximum RPM and maximum pressure NOT recommended

Maximum pressure or maximum RPM operation: 10% of every minute.

◎ Recommended fluids: Anti-wear type of hydraulic oil. Viscosity recommended 37-

73 cSt. Recommended filtration ISO18/13.

◎ Maximum operating temperature recommended 80℃.

◎ Special high pressure capacity shaft seal ensures back pressure up to 10 Mpa.

Recommended preferable back pressure 5 Mpa. Case drain line is recommended

when back pressure higher than 5 Mpa.. The motor life is benefited from a case

drain line.

◎ It is highly recommended that the motor runs at 30% of rated pressure for at least

one hour before application of full load. Be sure the motor is filled with fluid prior to

any load applications

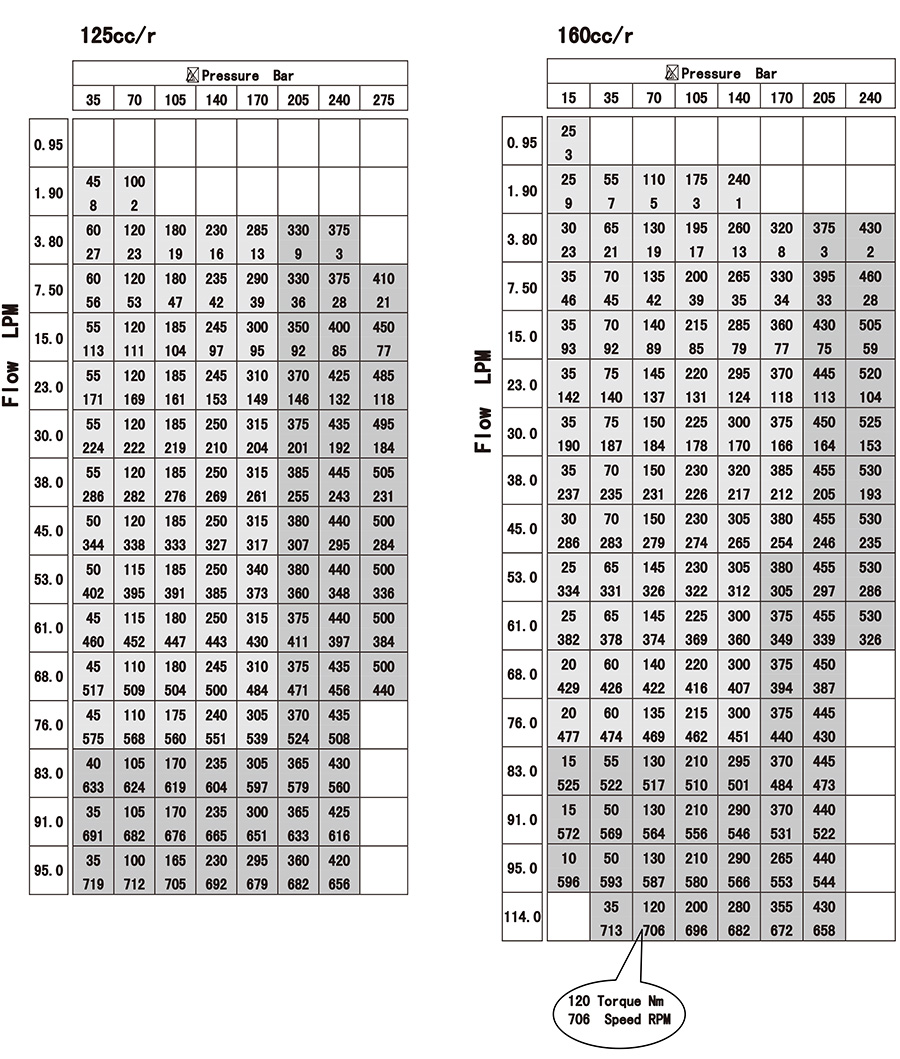

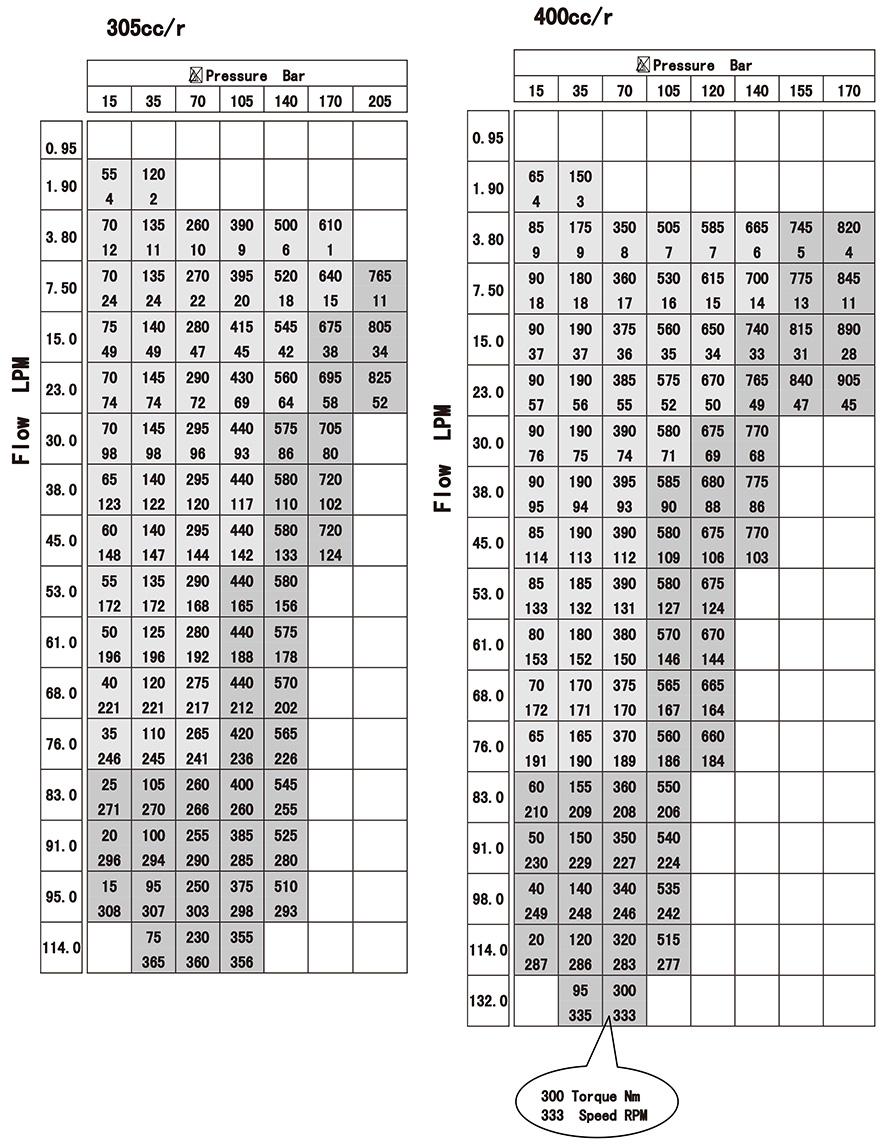

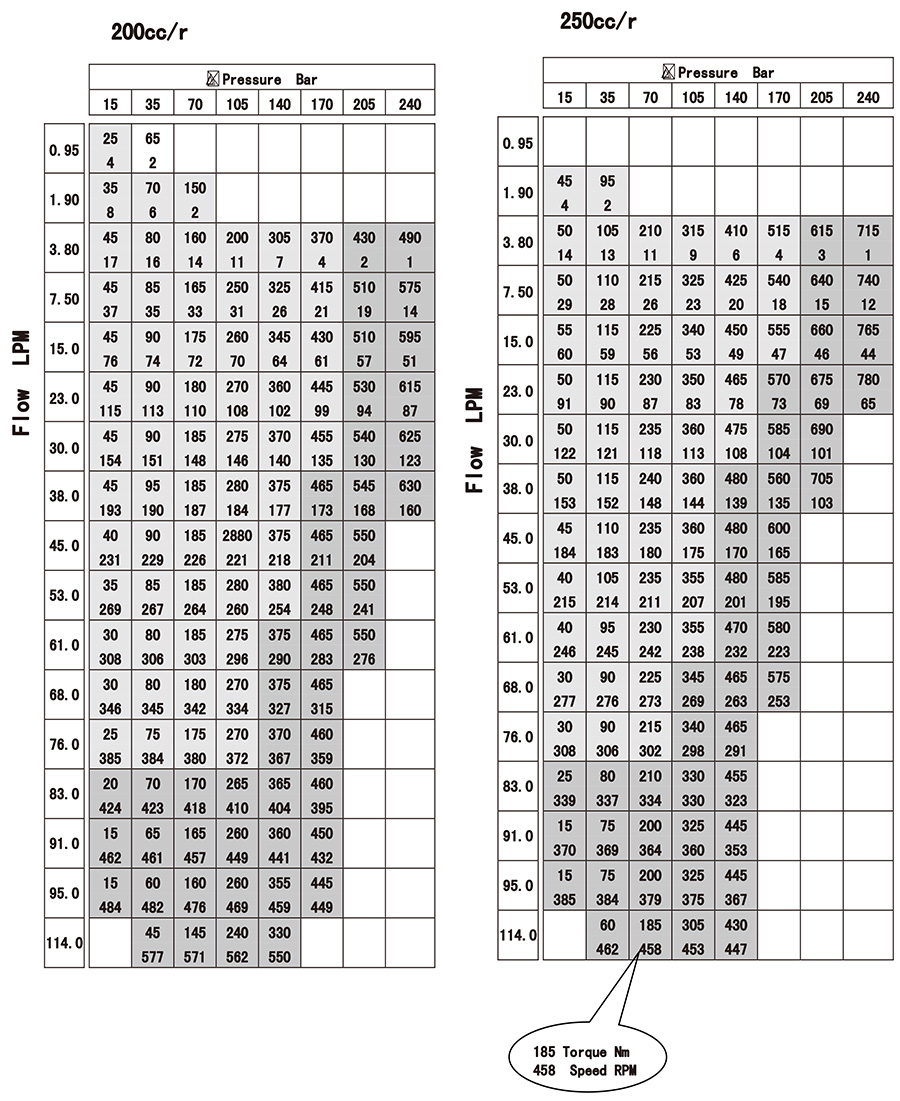

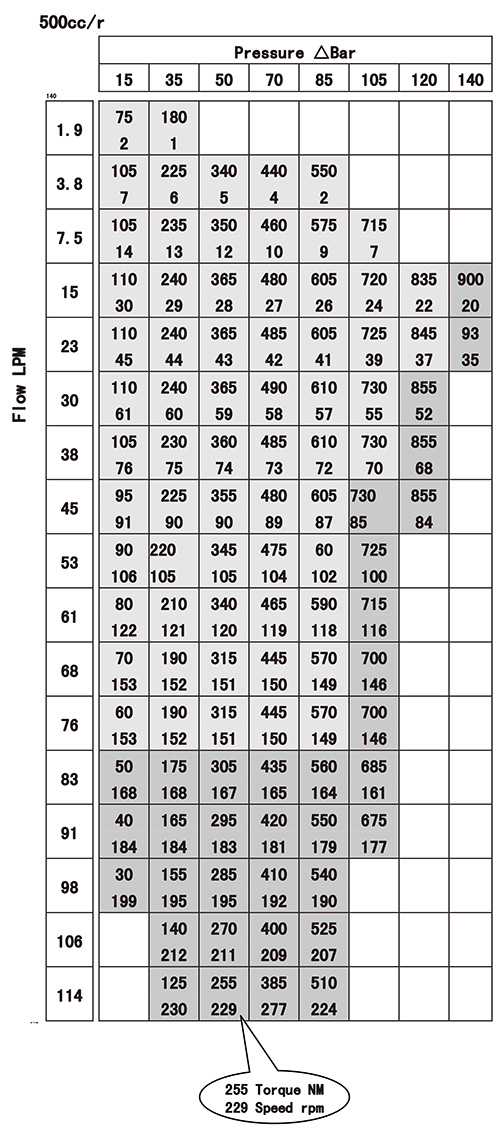

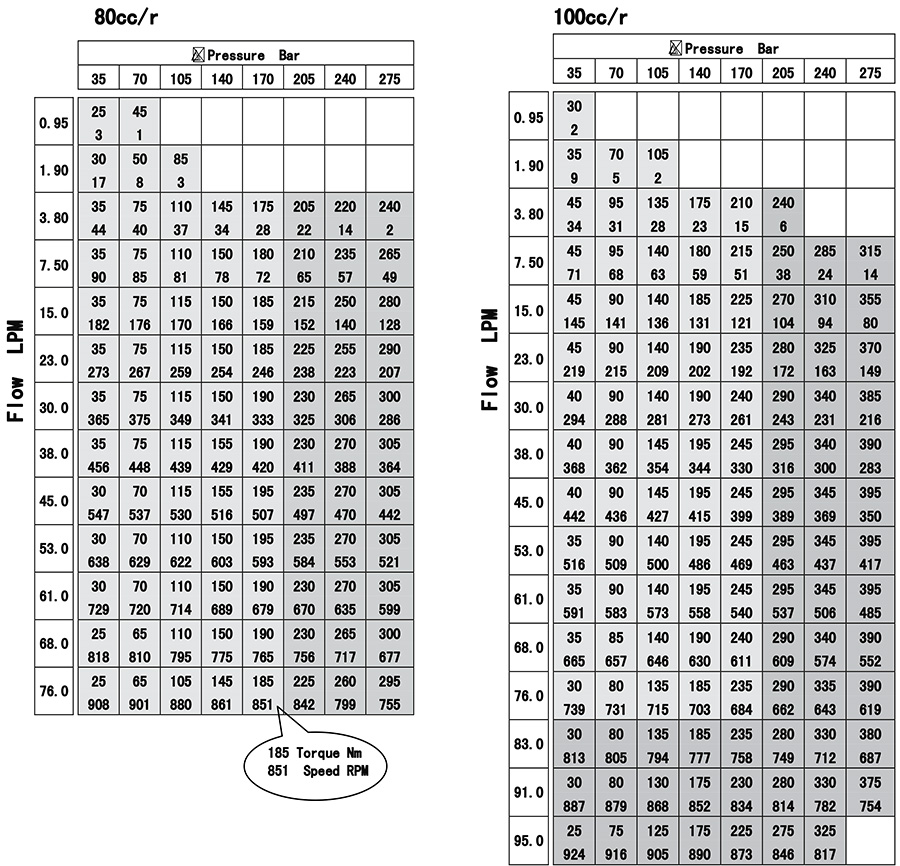

BMS Performance Data

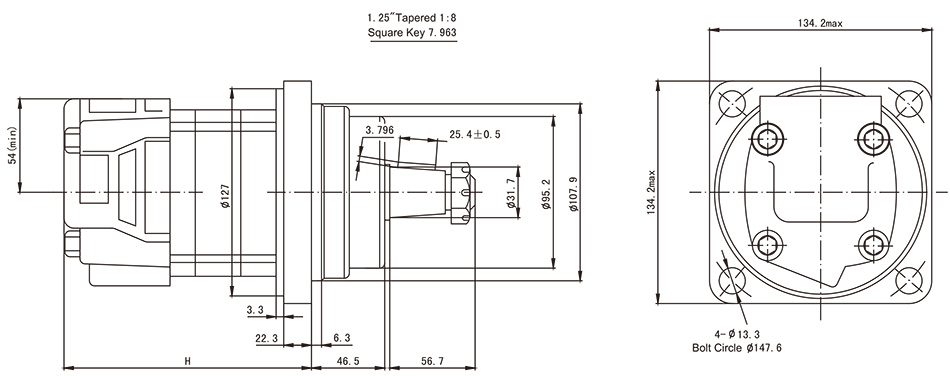

BMS Standard Motor ——Dimension and Mounting data

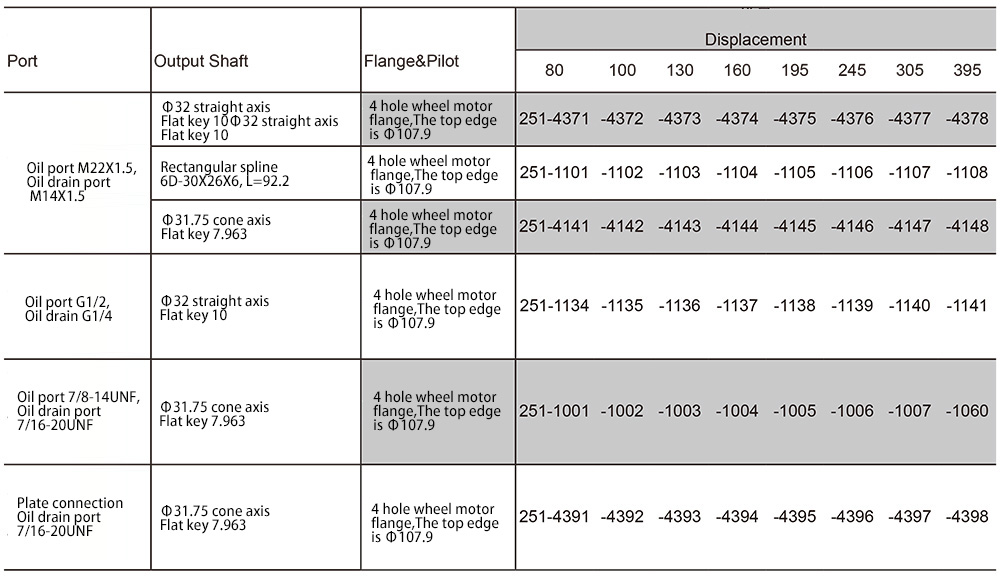

BMS Standard Motor Ordering Information

For more details and parameters, please ask for the company brochure Tel: 0574-86303976
